90 Deg 5D Bend Elbow Butt Weld Duplex 2205 Pipe Fittings ASTM A815 WPS S31803

  • 90 Deg 5D Bend Elbow Butt Weld Duplex 2205 Pipe Fittings ASTM A815 WPS S31803
Place of Origin CHINA
Brand Name Shangle
Certification ISO9001
Model Number stainless steel pipe fittings
Minimum Order Quantity MOQ500kg
Price Negotiable
Packaging Details In wooded cases or pallets,or as for clients requirement
Delivery Time 7-15 working days after receiving payment
Payment Terms L/C, T/T
Supply Ability 9999

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Port Ningbo Size 1/8”NB To 4”NB (Socketweld & Screwed-Threaded)
Type Screwed-Threaded Fittings Package Seaworthy Standard Package
Price Terms FOB,CIF,CFR,EXW Shape Equal
Connection Female/Male Degree 45°，90°，180°
Highlight

90 Deg 5D Bend Elbow

,

ASTM Duplex 2205 Pipe Fittings

,

Butt Weld Duplex 2205 Pipe Fittings
Leave a Message
Product Description

Duplex Steel 2205 Fittings, ASTM A815 WP-S S31803 1.4462 Butt Weld 90 Deg 5D Elbow B16.9

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.



Description :

ASTM A815 WPS31803 Duplex Steel Pipe Fittings can be welded or seamless. These duplex steel fittings are made up of a corrosion resistant, strong and high temperature capable duplex steel material. The welded fittings can range from 1/8” to 48” in nominal size and the seamless fittings range from 1/8” to 24”. ASTM A815 WPS31803 Duplex Stainless Steel Buttweld Fittings are the most common form of fittings. ASME A815 WP-S S31803 Duplex Steel Butt Weld Pipe Fittings contain a combination of austenitic and ferrite stainless steel which has excellent corrosion & oxidation resistance, high tensile strength and excellent mechanical properties.



Chemical Composition:

C Mn Si P S Cr Mo Ni N Fe
0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 22.0 – 23.0 3.0 – 3.5 4.50 – 6.50 0.14 – 0.20 63.72 min



Mechanical Properties:

Tensile Strength, ksi 90 min
0.2% Yield Strength, ksi 65 min
Elongation, % 25 min
Hardness [HRC] 293 max



Specifications:

Specifications

ASTM A815, ASME SA815

Size Range

Welded: 1/8” – 48”
Seamless: 1/8” – 24”

Connection

Welding

Radius of Bending

R=3D, 1D, 8D, 10D, 5D, 2D, Custom MSS Sp-43, 6D

Manufacturing Process

Forge, Press, Cast, Push etc.

Thickness

SCH10 - SCH XXS

Pressure Ratings

2000#, 150#, 6000#, 3000#, 9000#

End Connections:

socket weld and Threaded

Type

Tee, Elbows, Pipe Cap, Stub End, Crosses, Pipe Bend, Reducers

Dimensions

ASME B16.28, BS4504, MSS-SP-43, ASME/ANSI B16.9, BS1560, BS4504, BS10



Applications:

Food Processing

Pharmaceuticals

Chemical Processing

Piping & Tubing Systems

Oil & Gas Refineries

Petrochemicals

Sugar Mills & Distilleries

Ship Building Systems

Cement Industries

Fertilizers

Automation



Detail Images:

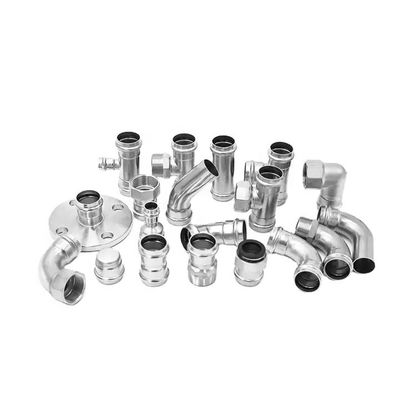

90 Deg 5D Bend Elbow Butt Weld Duplex 2205 Pipe Fittings ASTM A815 WPS S31803 0
