90 Degree Elbow Stainless Steel Pipe Fittings ASTM A182 F316l ASME B16.11

  • 90 Degree Elbow Stainless Steel Pipe Fittings ASTM A182 F316l ASME B16.11
Place of Origin CHINA
Brand Name Shangle
Certification ISO9001
Model Number stainless steel pipe fittings
Minimum Order Quantity MOQ500kg
Price Negotiable
Packaging Details In wooded cases or pallets,or as for clients requirement
Delivery Time 7-15 working days after receiving payment
Payment Terms L/C, T/T
Supply Ability 9999

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Port Ningbo Size 1/8”NB To 4”NB (Socketweld & Screwed-Threaded)
Type Screwed-Threaded Fittings Package Seaworthy Standard Package
Price Terms FOB,CIF,CFR,EXW Shape Equal
Connection Female/Male Degree 45°，90°，180°
Highlight

A182 Stainless Steel Pipe Fittings

,

ASTM 90 degree pipe Elbow

,

A182 Stainless Steel Pipe Fittings
Leave a Message
Product Description

ASTM A182 F316l ASME B16.11 Stainless Steel Elbow Fitting

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.



Description :

quare Socket Reducer Inserts , Stainlesss, Carbon Steel , Duplex Steel , Nickel Alloy Steel .



Product Pictures and Drawings

Socket weld reducer Inserts availbale in class 3000, 6000 and 9000

    Class 3000 Class 6000 Class 9000
Nominal Pipe Size C D Fitting
Type		 A B E Fitting
Type		 A B E Fitting
Type		 A B E
3/8 x 1/4 0.675 0.555 1 7/16 3/4 15/16 1 7/16 7/8 1
1/2 x 3/8 0.850 0.690 1 7/16 13/16 1 1/16 1 7/16 15/16 1 3/16
1/2 x 1/4 0.850 0.555 1 7/16 13/16 15/16 1 7/16 7/8 1
3/4 x 1/2 1.060 0.855 1 7/16 7/8 1 5/16 1 7/16 1 1/16 1 3/8 1 7/16 1 3/16 1 3/4
3/4 x 3/8 1.060 0.690 2 7/16 5/8 - 1 7/16 7/8 1 3/16
3/4 x 1/4 1.060 0.555 2 3/8 11/16 - 2 3/8 7/8 -
1 x 3/4 1.325 1.065 1 9/16 15/16 1 1/2 1 9/16 1 1/8 1 11/16 1 9/16 1 1/4 2
1 x 1/2 1.325 0.855 2 1/2 5/8 - 1 7/16 1 1/8 1 3/8 1 7/16 1 1/8 1 3/4
1 x 3/8 1.325 0.690 2 7/16 11/16 - 2 1/2 7/8 -
1 x 1/4 1.325 0.555 2 3/8 3/4 - 2 3/8 15/16 -
1 1/4 x 1 1.670 1.330 1 9/16 1 1 7/8 1 9/16 1 3/16 2 1 9/16 1 3/8 2 3/8
1 1/4 x 3/4 1.670 1.065 2 9/16 11/16 - 2 9/16 13/16 - 1 9/16 1 3/16 2
1 1/4 x 1/2 1.670 0.855 2 1/2 3/4 - 2 1/2 7/8 - 2 1/2 7/8 -
1 1/4 x 3/8 1.670 0.690 2 7/16 13/16 - 2 7/16 15/16 -
1 1/4 x 1/4 1.670 0.555 2 3/8 7/8 - 2 3/8 1 -
1 1/2 x 1 1/4 1.910 1.675 1 9/16 1 1/8 2 1/4 1 9/16 1 3/8 2 3/8 1 9/16 1 5/8 2 3/4
1 1/2 x 1 1.910 1.330 2 5/8 11/16 - 1 9/16 1 3/16 2 1 9/16 1 3/8 2 3/8
1 1/2 x 3/4 1.910 1.065 2 9/16 3/4 - 2 9/16 1 - 2 9/16 1 -
1 1/2 x 1/2 1.910 0.855 2 1/2 13/16 - 2 1/2 1 1/16 - 2 9/16 1 -
1 1/2 x 3/8 1.910 0.690 2 7/16 7/8 - 2 7/16 1 1/8 -
2 x 1 1/2 2.385 1.915 1 9/16 1 1/4 2 1/2 1 9/16 1 7/8 2 11/16 1 9/16 2 1/16 3
2 x 1 1/4 2.385 1.675 2 11/16 13/16 - 2 7/8 15/16 - 1 9/16 2 2 3/4
2 x 1 2.385 1.330 2 5/8 7/8 - 2 13/16 1 - 2 13/16 1 -
2 x 3/4 2.385 1.065 2 9/16 15/16 - 2 3/4 1 1/16 - 2 3/4 1 1/16 -
2 x 1/2 2.385 0.855 2 1/2 1 - 2 11/16 1 1/8 - 2 11/16 1 1/8 -




Stainless steel seamless butt welding inox pipe fitting

Type

Pipe elbow, tee, reducer, cap, stub end, bends etc.

Size

1/2"-24" seamless, 26"-60" welded

Standard

ANSI B16.9, EN10253-4, DIN 2605, GOST 17375-2001, JIS B2313, MSS SP 75, etc.

Wall thickness

SCH5S, SCH10S, SCH10, SCH40S, STD, XS, SCH80S, XXS, SCH20, SCH30, SCH40, SCH60, SCH80, SCH160, XXS and etc.

Elbow

30° 45° 60° 90° 180°,etc

Radius

LR/long radius/R=1.5D,SR/Shrot radius/R=1D, various radius: 3D,4D,5D,6D,7D, 10D, 20D etc.

End

Bevel end/BE/buttweld

Surface

Pickled,sand blasting, rolling blast,brighten,matt polished,mirror polished,vanished,

shinning



Material

Stainless steel: A403 WP304/304L, A403 WP316/316L, A403 WP321, A403 WP310S,

A403 WP347H, A403 WP316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571,

1.4541, 254Mo and etc.

Duplex stainless steel: UNS31803, 2205, UNS32205, UNS31500, UNS32750 ,

UNS32760, 1.4462,1.4410,1.4501 and etc.

Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,

C22, C-276,Monel400, Alloy20 etc.

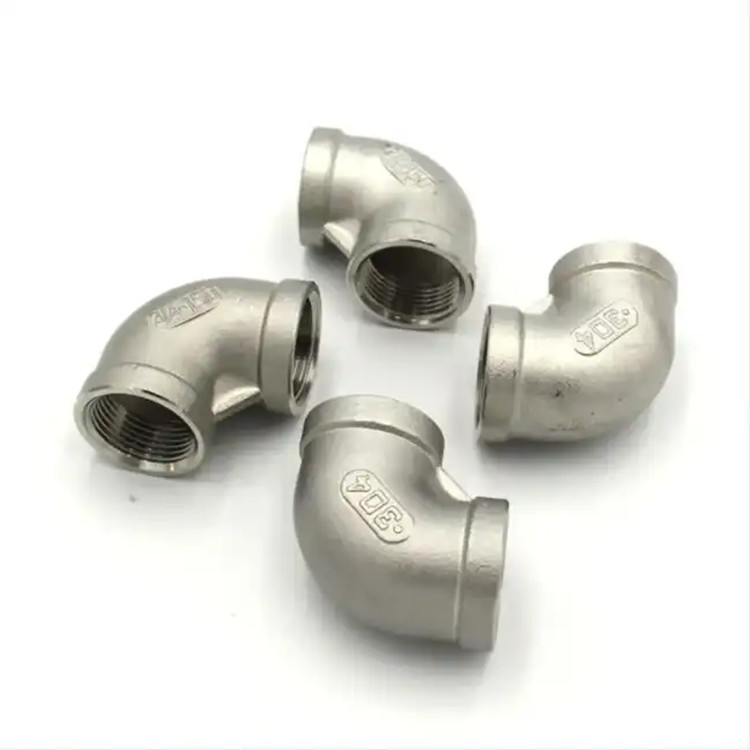

90 Degree Elbow Stainless Steel Pipe Fittings ASTM A182 F316l ASME B16.11 0
90 Degree Elbow Stainless Steel Pipe Fittings ASTM A182 F316l ASME B16.11 1

    Class 3000 Class 6000 Class 9000
Nominal Pipe Size C D Fitting
Type		 A B E Fitting
Type		 A B E Fitting
Type		 A B E
3/8 x 1/4 0.675 0.555 1 7/16 3/4 15/16 1 7/16 7/8 1
1/2 x 3/8 0.850 0.690 1 7/16 13/16 1 1/16 1 7/16 15/16 1 3/16
1/2 x 1/4 0.850 0.555 1 7/16 13/16 15/16 1 7/16 7/8 1
3/4 x 1/2 1.060 0.855 1 7/16 7/8 1 5/16 1 7/16 1 1/16 1 3/8 1 7/16 1 3/16 1 3/4
3/4 x 3/8 1.060 0.690 2 7/16 5/8 - 1 7/16 7/8 1 3/16
3/4 x 1/4 1.060 0.555 2 3/8 11/16 - 2 3/8 7/8 -
1 x 3/4 1.325 1.065 1 9/16 15/16 1 1/2 1 9/16 1 1/8 1 11/16 1 9/16 1 1/4 2
1 x 1/2 1.325 0.855 2 1/2 5/8 - 1 7/16 1 1/8 1 3/8 1 7/16 1 1/8 1 3/4
1 x 3/8 1.325 0.690 2 7/16 11/16 - 2 1/2 7/8 -
1 x 1/4 1.325 0.555 2 3/8 3/4 - 2 3/8 15/16 -
1 1/4 x 1 1.670 1.330 1 9/16 1 1 7/8 1 9/16 1 3/16 2 1 9/16 1 3/8 2 3/8
1 1/4 x 3/4 1.670 1.065 2 9/16 11/16 - 2 9/16 13/16 - 1 9/16 1 3/16 2
1 1/4 x 1/2 1.670 0.855 2 1/2 3/4 - 2 1/2 7/8 - 2 1/2 7/8 -
1 1/4 x 3/8 1.670 0.690 2 7/16 13/16 - 2 7/16 15/16 -
1 1/4 x 1/4 1.670 0.555 2 3/8 7/8 - 2 3/8 1 -
1 1/2 x 1 1/4 1.910 1.675 1 9/16 1 1/8 2 1/4 1 9/16 1 3/8 2 3/8 1 9/16 1 5/8 2 3/4
1 1/2 x 1 1.910 1.330 2 5/8 11/16 - 1 9/16 1 3/16 2 1 9/16 1 3/8 2 3/8
1 1/2 x 3/4 1.910 1.065 2 9/16 3/4 - 2 9/16 1 - 2 9/16 1 -
1 1/2 x 1/2 1.910 0.855 2 1/2 13/16 - 2 1/2 1 1/16 - 2 9/16 1 -
1 1/2 x 3/8 1.910 0.690 2 7/16 7/8 - 2 7/16 1 1/8 -
2 x 1 1/2 2.385 1.915 1 9/16 1 1/4 2 1/2 1 9/16 1 7/8 2 11/16 1 9/16 2 1/16 3
2 x 1 1/4 2.385 1.675 2 11/16 13/16 - 2 7/8 15/16 - 1 9/16 2 2 3/4
2 x 1 2.385 1.330 2 5/8 7/8 - 2 13/16 1 - 2 13/16 1 -
2 x 3/4 2.385 1.065 2 9/16 15/16 - 2 3/4 1 1/16 - 2 3/4 1 1/16 -
2 x 1/2 2.385 0.855 2 1/2 1 - 2 11/16 1 1/8 - 2 11/16 1 1/8 -
