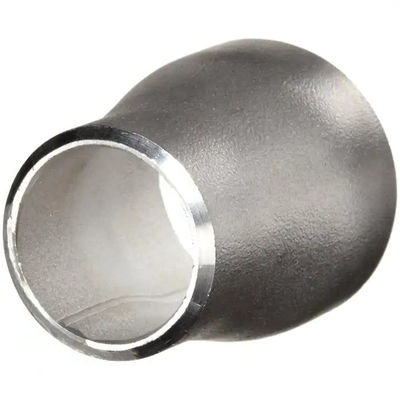

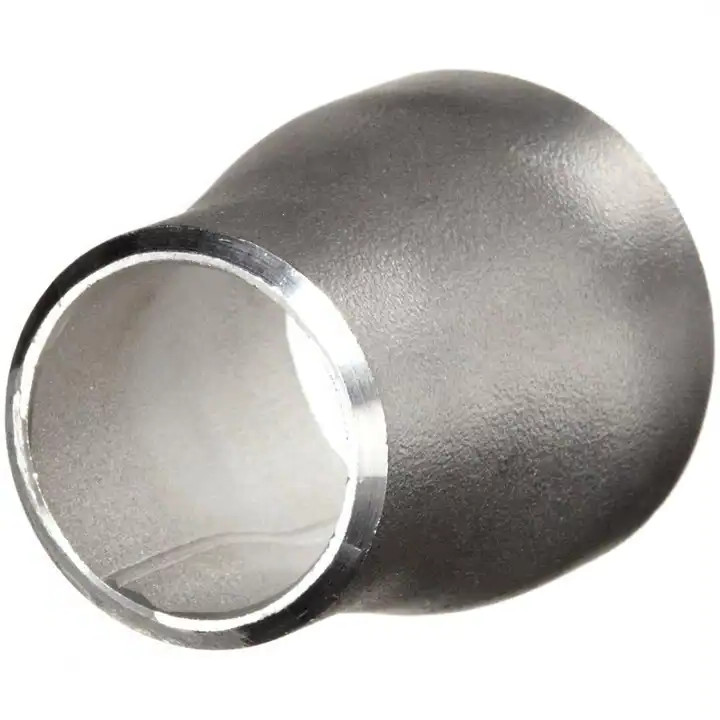

B16.9 Stainless Steel Pipe Fittings ASTM A403 WP304L S30403 Concentric Reducer

  • B16.9 Stainless Steel Pipe Fittings ASTM A403 WP304L S30403 Concentric Reducer
Place of Origin CHINA
Brand Name Shangle
Certification ISO9001
Model Number stainless steel pipe fittings
Minimum Order Quantity MOQ500kg
Price Negotiable
Packaging Details In wooded cases or pallets,or as for clients requirement
Delivery Time 7-15 working days after receiving payment
Payment Terms L/C, T/T
Supply Ability 9999

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Port Ningbo Size 1/8”NB To 4”NB (Socketweld & Screwed-Threaded)
Type Screwed-Threaded Fittings Package Seaworthy Standard Package
Price Terms FOB,CIF,CFR,EXW Shape Equal
Connection Female/Male Degree 45°，90°，180°
Highlight

WP304L Stainless Steel Pipe Fittings

,

B16.9 Stainless Steel Concentric Reducer

,

S30403 Stainless Steel Pipe Fittings
Leave a Message
Product Description

SS Pipe Fitting ASTM A403 WP304L S30403 Concentric Reducer B16.9

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.



Description :

ASTM A403 WP304L Fittings come under the standard ASME B16.9 and diameters ranging from ½ inches to 48 inches. The material has 18% chromium and 8% nickel in the composition and has good corrosion resistance and strength. The ASTM A403 WP304L Fittings have high operating temperature range up to 870 degrees Celsius. So they can be used in high heat applications. The low carbon content in the material makes it better for welding applications.



Buttweld Concentric Reducer Specifications

Outside Diameter (OD) Seamless Pipe Concentric Reducer ( 1/2″～24″), ERW / Welded / Fabricated Pipe Concentric Reducer (1/2″～48″)
Dimensions ASME/ANSI B16.9, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313, ASME B16.28
Wall Thickness SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm
Bending Radius R=1D – 10D, 15D, 20D
Product’s Angle Concentric Reducer
Important Grades ASTM A403 WP 304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L
Production Materials Stainless Steel, Alloy Steel, Carbon Steel, Duplex, Nickel Alloys, Cupro Nickel, Low Temperature Steel
SS Melting Points 1400-1450°C (WP304, WP304L), 1390-1440 °C (WP316L), 1370 – 1400 °C (WP316)





Chemical Composition and Mechanical Property for 304L

Steel Grade Chemical Composition Mechanical Performance
C(Max) Si(Max) Mn(Max) P(Max) S(Max) Ni Cr N Mo Tensile Strength
(Min)		 Yield Strength
(Min)
Mpa Mpa
304L 0.03 0.75 2.00 0.045 0.03 8.0–12.0 18.0–20.0 0.1 / 485 170





Dimensional Tolerances of Concentric and Eccentric Reducers ASME B16.9

Nominal Pipe Size 1/2 to 2.1/2 3 to 3.1/2 4 5 to 8
Outside Diameter
at Bevel (D)		 + 1.6
– 0.8		 1.6 1.6 + 2.4
– 1.6
Inside Diameter at End 0.8 1.6 1.6 1.6
Overall Length (H) 2 2 2 2
Nominal Pipe Size 10 to 18 20 to 24 26 to 30 32 to 48
Outside Diameter
at Bevel (D)		 + 4
– 3.2		 + 6.4
– 4.8		 + 6.4
– 4.8		 + 6.4
– 4.8
Inside Diameter at End 3.2 4.8 + 6.4
– 4.8		 + 6.4
– 4.8
Overall Length (H) 2 2 5 5
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness



Applications:

-Food processing equipment

-Equipment and appliances

-Architectural railings

-Pharmaceutical and chemical process equipment

-Heat exchangers

-Threaded fasteners

-Springs

-Industrial fabrications



Stainless steel seamless butt welding inox pipe fitting

Type

Pipe elbow, tee, reducer, cap, stub end, bends etc.

Size

1/2"-24" seamless, 26"-60" welded

Standard

ANSI B16.9, EN10253-4, DIN 2605, GOST 17375-2001, JIS B2313, MSS SP 75, etc.

Wall thickness

SCH5S, SCH10S, SCH10, SCH40S, STD, XS, SCH80S, XXS, SCH20, SCH30, SCH40, SCH60, SCH80, SCH160, XXS and etc.

Elbow

30° 45° 60° 90° 180°,etc

Radius

LR/long radius/R=1.5D,SR/Shrot radius/R=1D, various radius: 3D,4D,5D,6D,7D, 10D, 20D etc.

End

Bevel end/BE/buttweld

Surface

Pickled,sand blasting, rolling blast,brighten,matt polished,mirror polished,vanished,

shinning



Material

Stainless steel: A403 WP304/304L, A403 WP316/316L, A403 WP321, A403 WP310S,

A403 WP347H, A403 WP316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571,

1.4541, 254Mo and etc.

Duplex stainless steel: UNS31803, 2205, UNS32205, UNS31500, UNS32750 ,

UNS32760, 1.4462,1.4410,1.4501 and etc.

Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,

C22, C-276,Monel400, Alloy20 etc.
